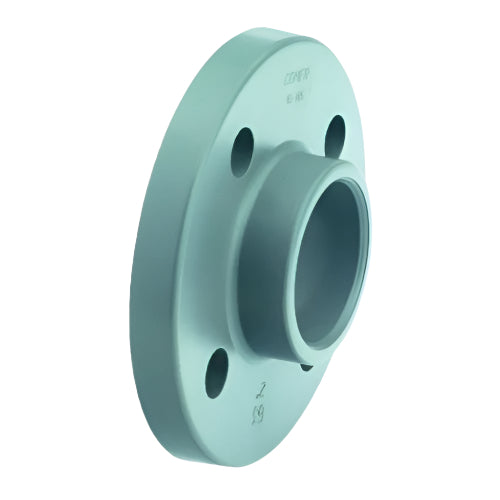

ABS Plain BS10 Table D/E Flange

Our ABS full face BS10 table D/E fittings are available in sizes 1/2" to 4".

These fittings are drilled to tables D and E of BS 10:1962.

A full face flange is used to bolt a section of pipework to either a valve, fitting or tank. ABS solvent cement should be used along with cleaner should be used for connecting the flange and pipe together.

1/2" - 4 Holes PCD 67MM

3/4" - 4 Holes PCD 73MM

1" - 4 Holes PCD 83MM

1 1/4" - 4 Holes PCD 87MM

1 1/2" - 4 Holes PCD 98MM

2" - 4 Holes PCD 114MM

2 1/2" - 4 Holes PCD 145MM

3" - 4 Holes PCD 146MM

4" - 8 Holes PCD 178MM
